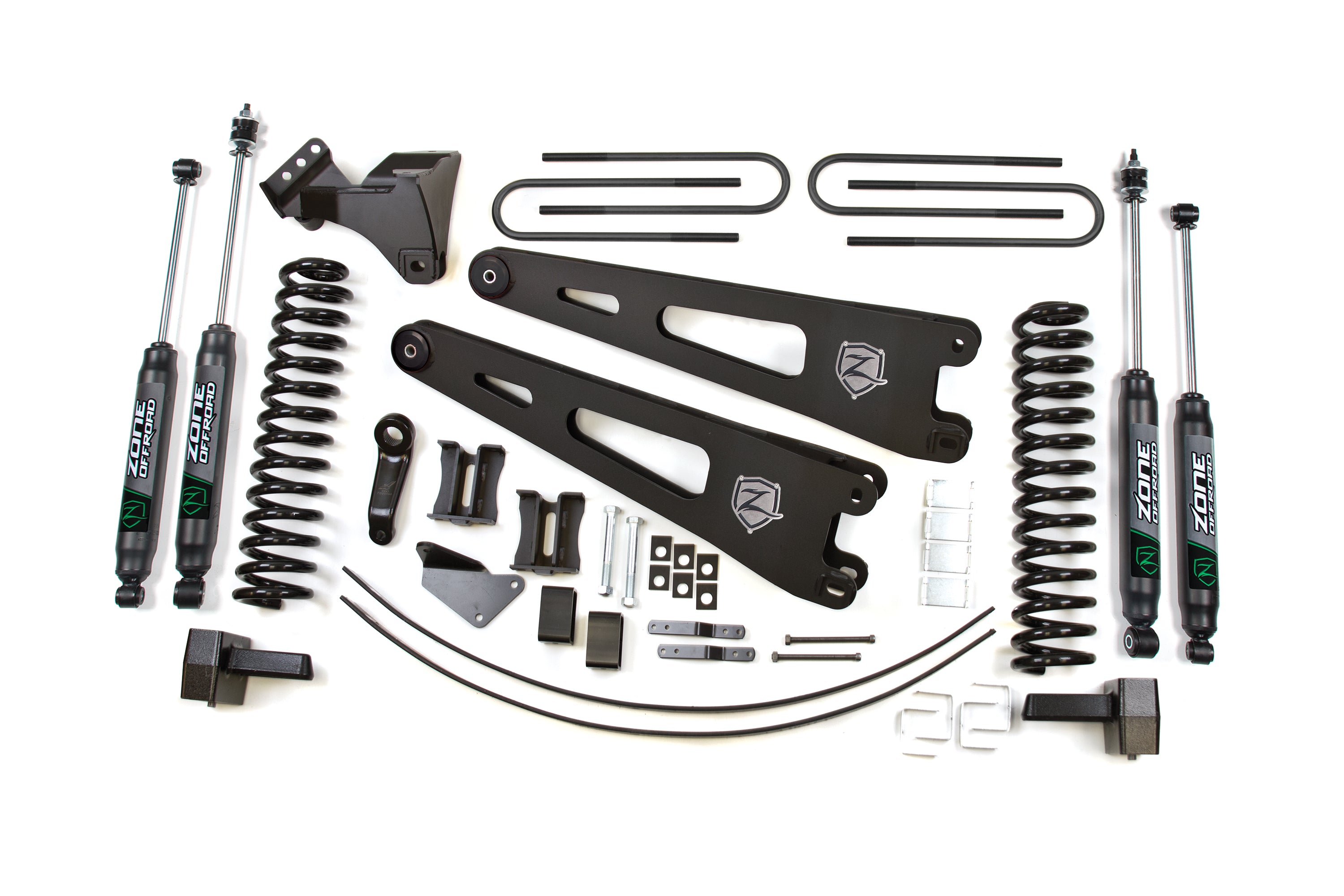

Zone 6" Radius Arm Lift Kit

Prepare to have everyone looking up at you with this 6" Radius Arm Lift Kit that lets you clear huge 37" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your Diesel 4WD 2005 - 2007 Ford F-250 / F-350.

• Brake line relocation brackets allow re-use of factory brake lines
• Bump stop extensions properly limit up-travel, protecting your vehicle
• Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits
• High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance
• Rear Add-A-Leaf Kit provides additional lift and improves weight capacity
• Rear lift block and longer U-bolts for easy installation and level stance
• Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
• Sway bar relocation brackets maintain operating angle for reduced body roll

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156365683
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 4.5"
• Back Spacing 3: 4.5"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Radius Arm Drop
• Installation Difficulty: 3 out of 5
• Installation Time: 6 hrs
• Lift Type: Lift Kit
• Max Tire Size: 37 x 12.5
• Max Tire Size 2: 37 x 12.5
• Max Tire Size 3: 37 x 12.5
• Rear Lift Height: 4"
• Rear Lift Method: Add-A-Leaf & Cast Block
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 17 x 9
• Wheel Size 2: 18 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: CA
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 307.7000 POUNDS
