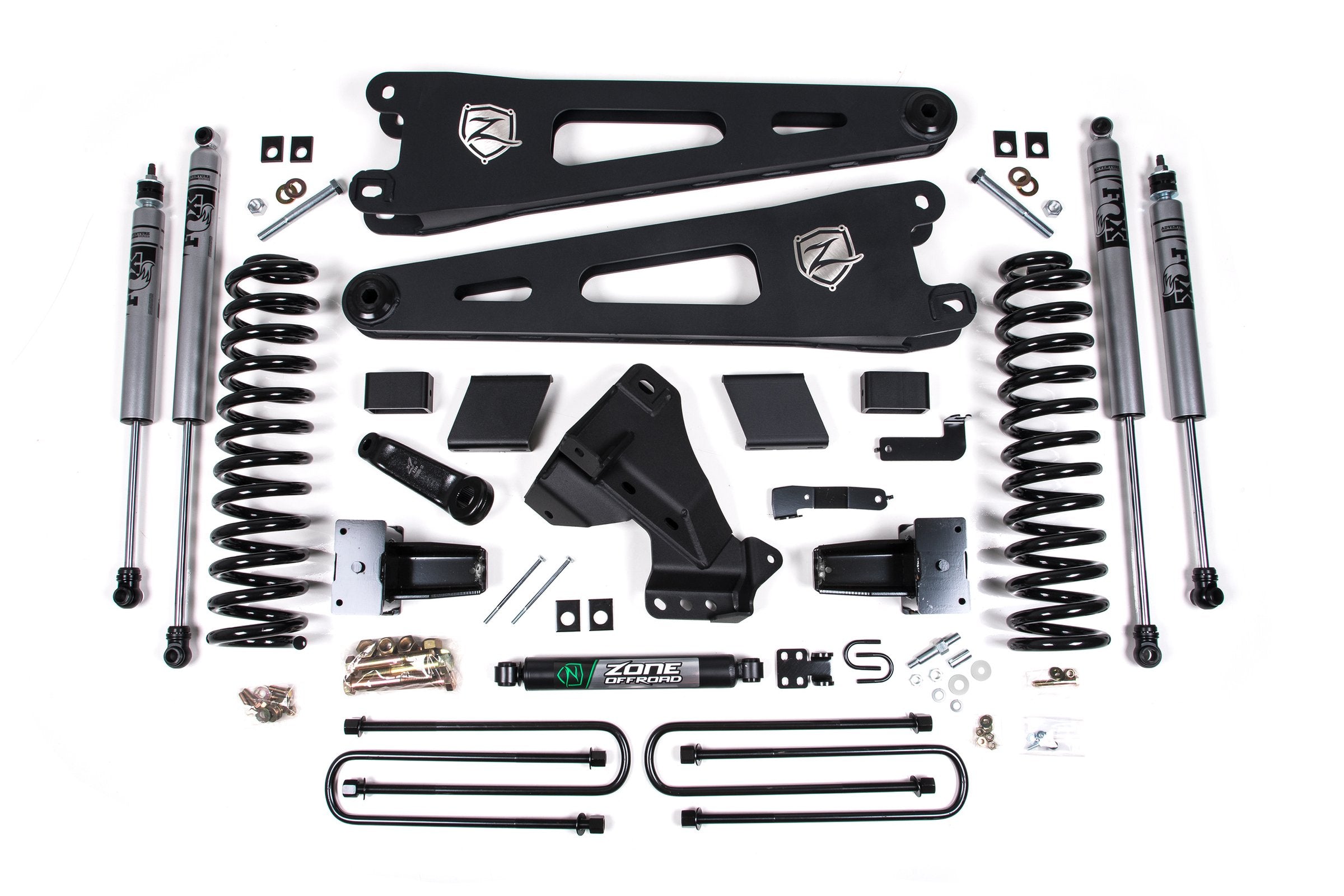

Zone 6" Radius Arm Lift Kit - Gas

Zone Offroad now offers 6" radius arm lift kits for the 2020-2022 Ford F250/F350 Super Duty 4WD gas trucks. These new 6" lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to re-center front axle
• Full length Diesel/ Gas specific coil springs for a smooth ride

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156366352
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 4.5"
• Back Spacing 3: 4.5"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Coil Springs
• Installation Difficulty: 3 out of 5
• Installation Time: 4-6 hrs
• Lift Type: Suspension
• Material: Steel
• Max Tire Size: 37 x 12.5
• Max Tire Size 2: 37 x 12.5
• Max Tire Size 3: 37 x 12.5
• Rear Lift Height: 5"
• Rear Lift Method: Block Kit
• Required Tools: Wrenches: Standard
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 20 x 9
• Wheel Size 2: 20 x 10
• Wheel Size 3: 18 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 274.4500 POUNDS
