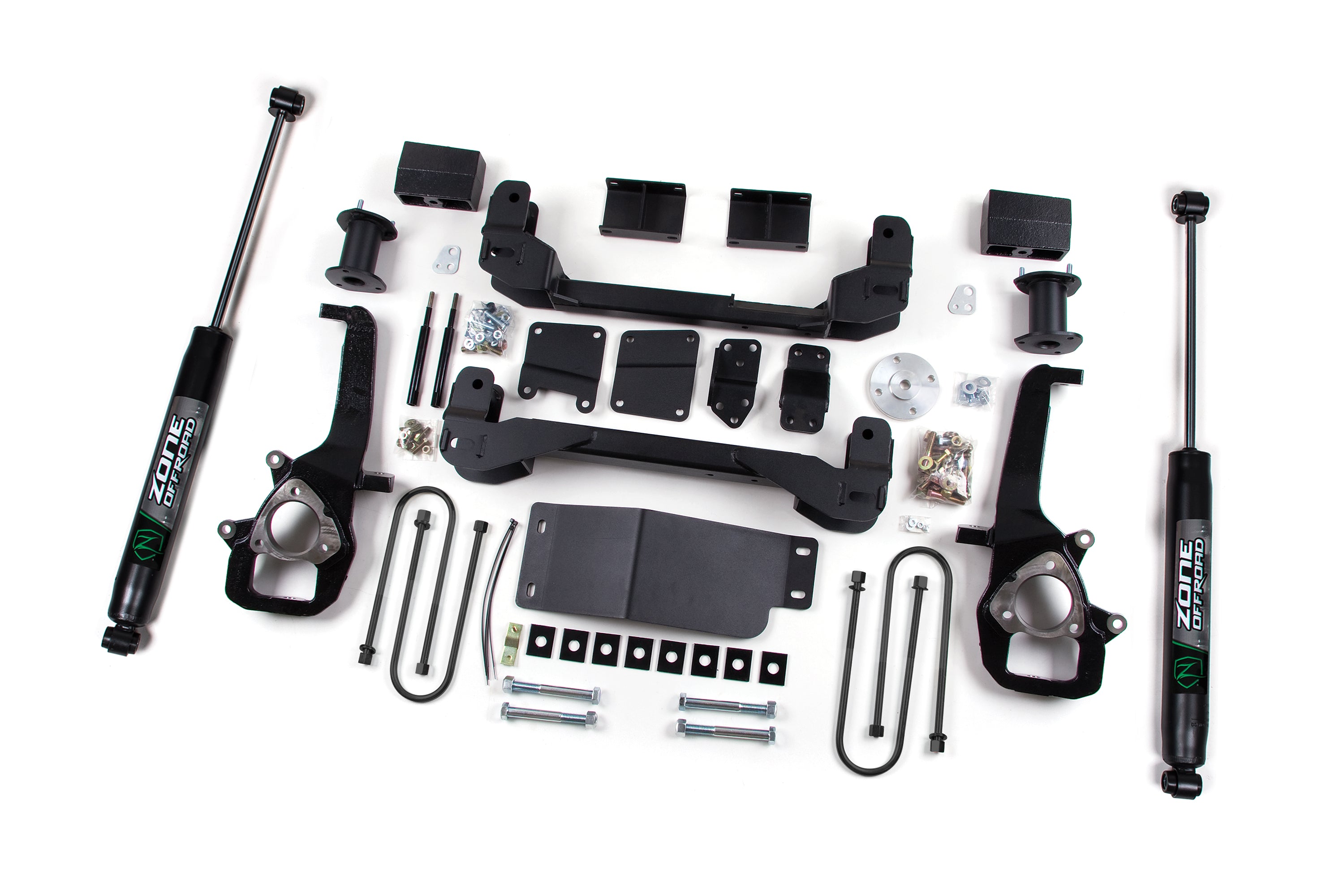

Zone 6" Strut Spacer Lift Kit

Take your Dodge Ram 1500 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential relocation brackets to correct CV operating angle
• Differential skid plate offers improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Sway bar extension and driveshaft spacer and alignment cam bolts to correct operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156363399
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 5"
• Back Spacing 3: 5"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Strut Spacers
• Installation Difficulty: 3 out of 5
• Installation Time: 8 hrs
• Lift Type: Lift Kit
• Max Tire Size: 37 x 12.5
• Max Tire Size 2: 37 x 12.5
• Max Tire Size 3: 37 x 12.5
• Rear Lift Height: -
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 17 x 9
• Wheel Size 2: 18 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 223.7000 POUNDS
