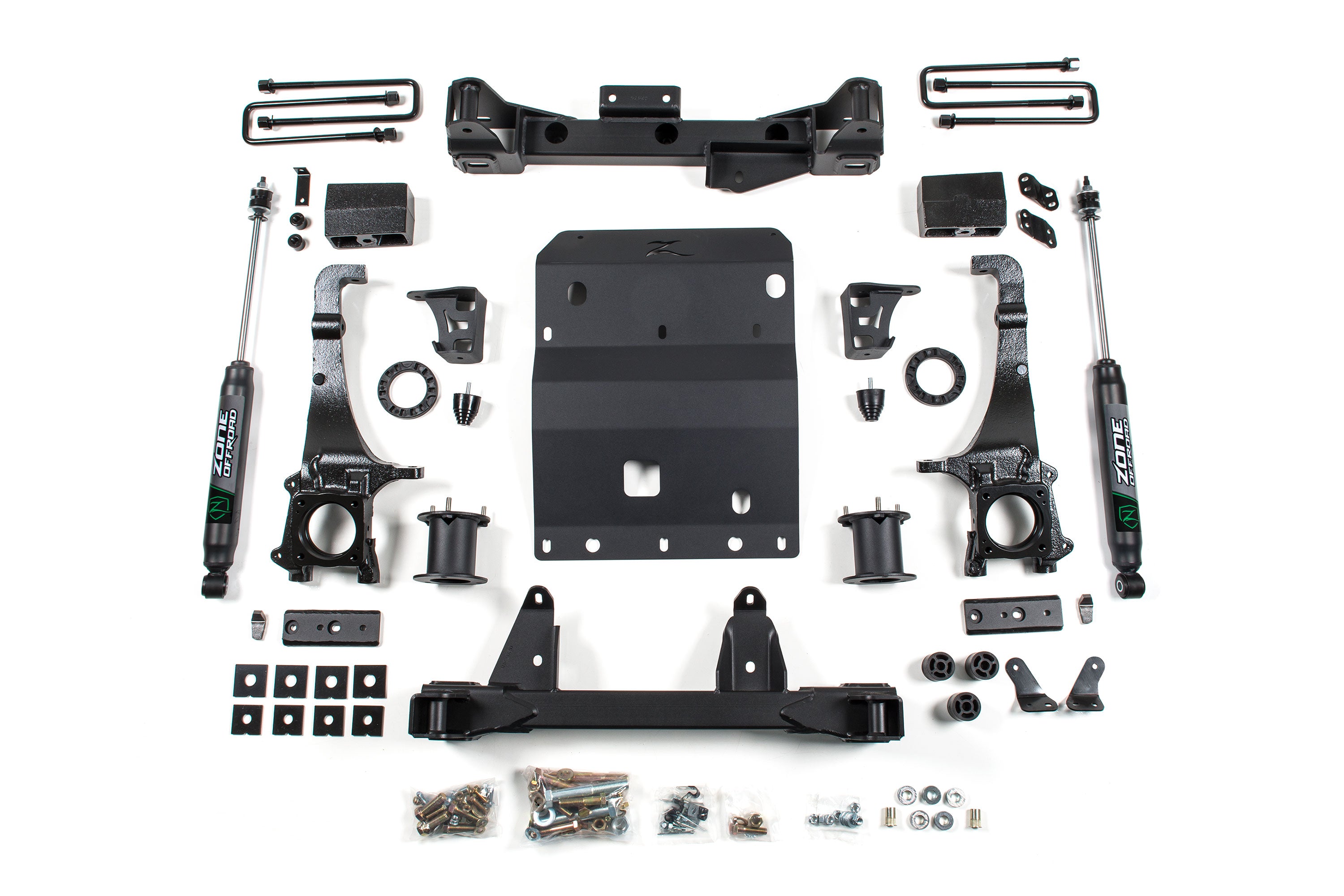

Zone 6" Suspension Lift Kit

Take your Tacoma to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Full width belly skid plate offers improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Bump stop, sway bar and brake line relocation brackets to correct operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156367984
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 4.5"
• Back Spacing 3: 4.5"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Knuckle & Strut Spacer
• Installation Difficulty: 4 out of 5
• Installation Time: 7 hrs
• Lift Type: Lift Kit
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 35 x 12.5
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 4"
• Rear Lift Method: Cast Blocks
• Required Tools: Strut Compressor
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 18 x 9
• Wheel Size 2: 20 x 9
• Wheel Size 3: 22 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 204.4000 POUNDS
