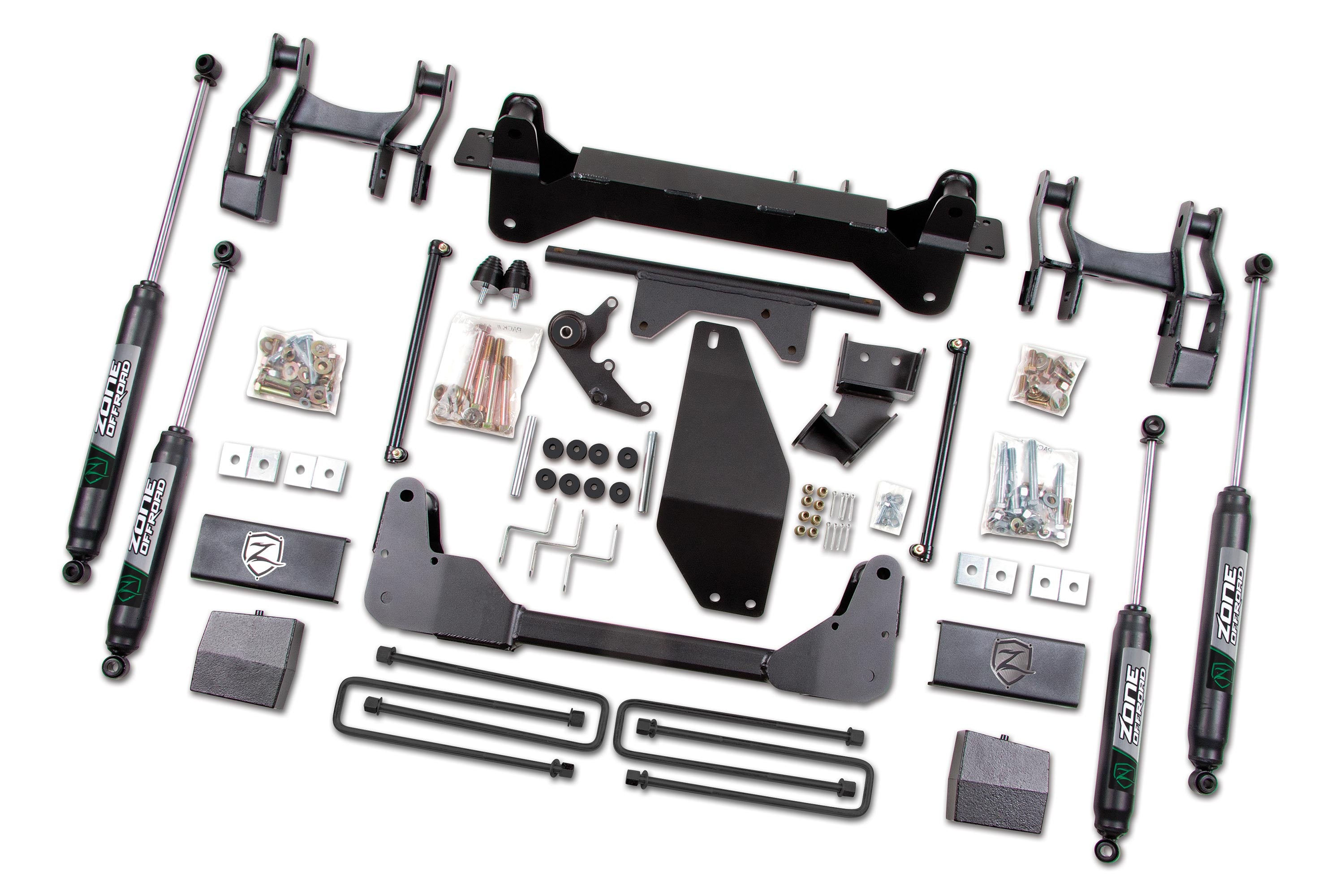

Zone 6" Torsion Bar Drop Lift Kit

Turn heads and drop jaws when you lift your Chevy with this 6" Lift Kit. This kit has everything you need to clear 35" tires and all the pieces and parts for optimal steering and drivetrain geometry. Fits 4WD 1988 - 1998 Chevy/GM K1500 truck & SUVs.

• Heavy-duty differential skid slate improves offroad protection
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
• Lift system does not change the front track width of the vehicle
• Multi-point differential relocation brackets secure front differential for improved CV operating angles
• Relocation bracket allows for reinstallation of the factory spare tire
• Upper control arm relocation brackets correct front suspension geometry.

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156360121
• Accommodates Factory Wheels: Yes
• Adjustable: No
• Back Spacing: Stock
• Back Spacing 2: 6"
• Back Spacing 3: 6"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Torsion Bar Drop
• Installation Difficulty: 4 out of 5
• Installation Time: 8 hrs
• Lift Type: Lift Kit
• Material: 1/4" Steel
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 35 x 12.5
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 5"
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: Stock
• Wheel Size 2: 17 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 192.6500 POUNDS
