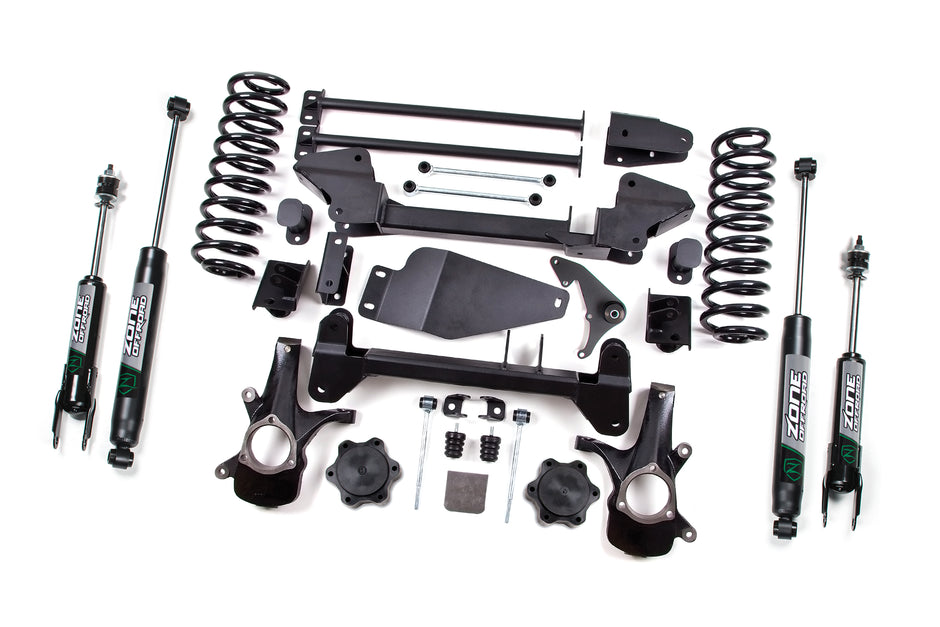

Zone 6" Torsion Bar Drop Lift Kit

When you go big you can go anywhere. This 6" Lift Kit puts your SUV into a class of its own, letting you clear 35" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2000 - 2006 Chevy/GM 1500 SUV.

• Heavy-duty differential skid slate improves offroad protection
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
• High-strength, CNC machined, replacement Steering_Knuckles improve strength while correcting steering angles
• Multi-point differential relocation brackets secure front differential for improved CV operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156361449
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 5"
• Back Spacing 3: 5.75"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Torsion Bar Drop
• Installation Difficulty: 3 out of 5
• Installation Time: 8 hrs
• Lift Type: Lift Kit
• Max Tire Size: 33 x 12.5
• Max Tire Size 2: 34 x 12.5
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 5.25"
• Rear Lift Method: Coil Springs
• Required Tools: Torsion Bar Unloading Tool
• Requires Metal Cutting: No
• Requires Welding: Yes
• Wheel Size: 17 x 9
• Wheel Size 2: 18 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 254.8000 POUNDS
