00-04 FSD FRONT 4-8" BOX KIT
$531.87
Skip to product information

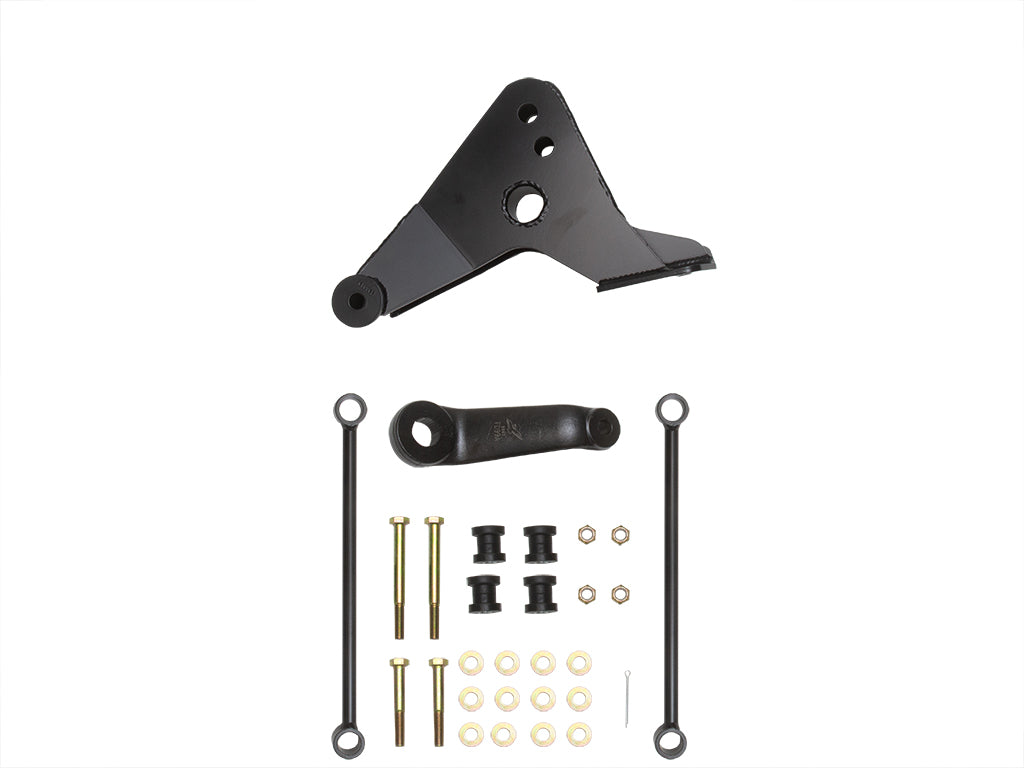

The ICON Vehicle Dynamics 2000-2004 Ford F-250 and F-350 Super Duty/2000-2005 Ford Excursion 4-8" Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 4-6” lift suspension system as well as taller lift heights, up to 8" over stock. This kit includes a fabricated front track bar drop bracket made from CNC laser cut and brake formed .25" steel plate for strength and to ensure proper track bar angle and axle placement. This bracket features two track bar mounting locations, allowing the bracket to be compatible with a wide lift height range. A 4" drop pitman arm corrects steering geometry for the lift height range and eliminates bump steer common when the steering drag link and track bar are not parallel. Front extended sway bar links with polyurethane bushings corrects sway bar angle and prevents bind through the full range of suspension travel. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.
00-04 FSD FRONT 4-8" BOX KIT
$531.87
- Essential components for install of ICON 4-6" lift suspension systems
- Track bar bracket fabricated from CNC laser cut and brake formed .25" steel plate
- 2 postion track bar mount allows configuration for a wide lift height range
- 4" drop pitman arm
- Front extended sway bar links prevent sway bar bind
- Polyurethane sway bar link bushings
- Semi-gloss black powder coat finish for all fabricated components
- Fully bolt on installation with all hardware included
- Protected by ICON's Limited Lifetime Warranty
- ICON 00-04 FSD FRONT 4-8" BOX KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103402116
- 1092: Steel
- 1908: 8
- 3145: Specific
- 3390: Performance
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Bushing Color: Black
- Bushings Included: Yes
- California Prop 65 Warning: Yes
- Colors: Black
- Material: Steel
- Service Parts: 611002 - SWAY BAR LINK BUSHING AND SLEEVE KIT
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 16.0000 x 16.0000 x 4.0000 inches
- Weight: 21.0000 POUNDS
