Bilstein Shock Absorbers
$144.72
Skip to product information

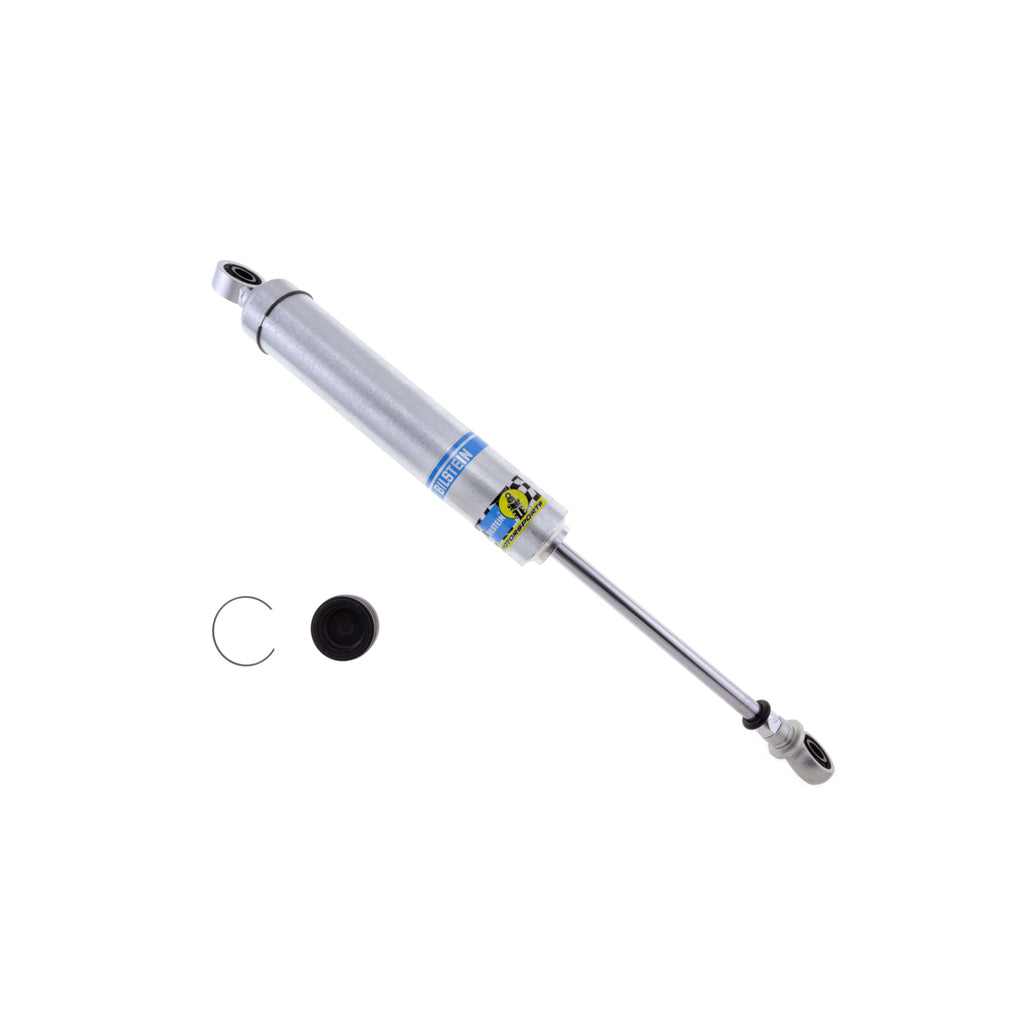

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Bilstein Shock Absorbers
$144.72
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
- No Applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860750323
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 13.15
- Collapsed Length (MM): 334.0
- Extended Length (IN): 20.08
- Extended Length (MM): 510.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Piston Type: Digressive
- Segment: Motorsports
- Series: SZ Series
- Shaft Diameter: 14mm
- Spring Hardware: B4-BOA-0000117
- Spring Seat Included: No
- Stroke/Travel Length (IN): 6.93
- Stroke/Travel Length (mm): 176.0
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 3.2900 POUNDS
