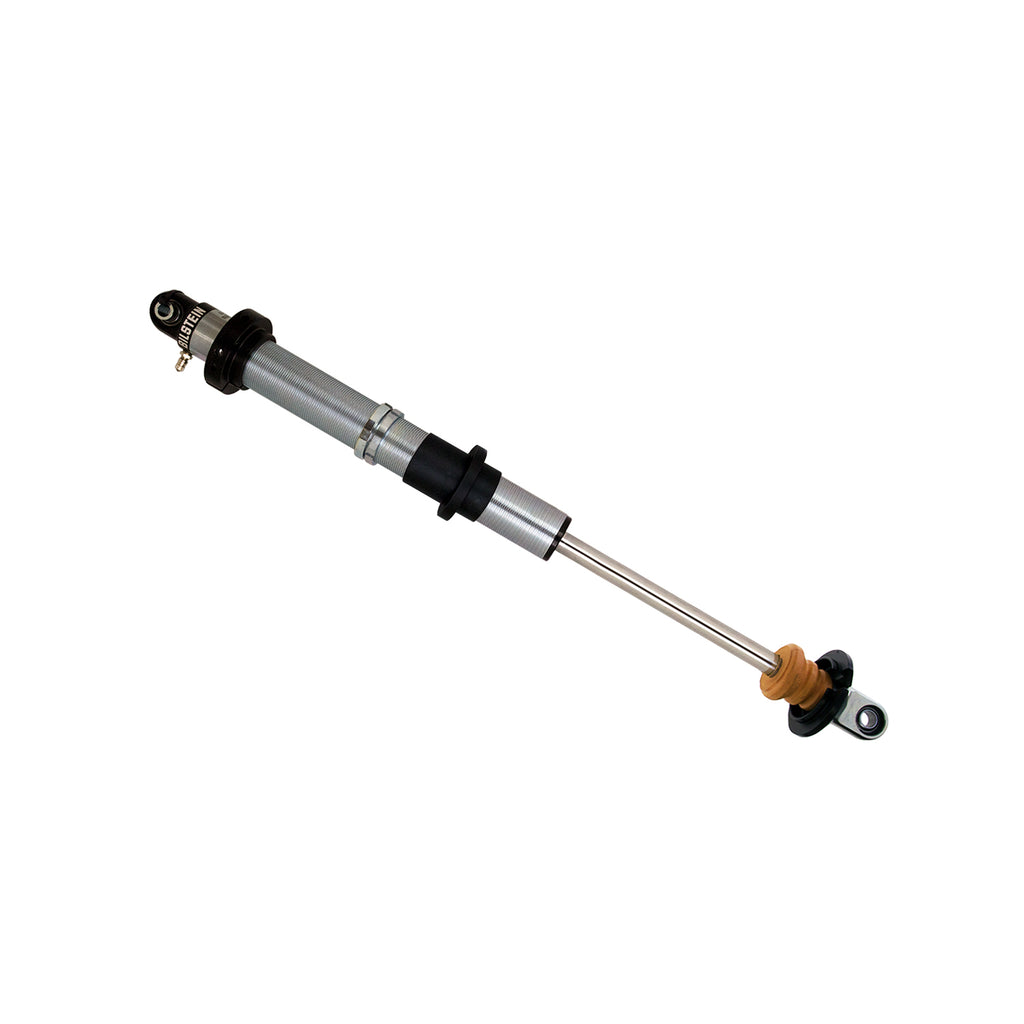

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Bilstein Shock Absorbers
$513.00
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
- No Applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860750668
- Body Design: Threaded Body (Coilover)
- Boot Included: N/A
- Collapsed Length (IN): 19.50
- Collapsed Length (MM): 495.3
- Compression @0.52m/s: Coil Carrier No Valving
- Extended Length (IN): 31.50
- Extended Length (MM): 800.1
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye .5x1.5in
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Rebound @0.52m/s: Coil Carrier No Valving
- Reservoir: Yes
- Segment: Motorsports
- Series: M 9200 (Coil Carrier)
- Shaft Diameter (mm): 22.0
- Spring Seat Included: No
- Stroke/Travel Length (IN): 12.00
- Stroke/Travel Length (mm): 304.8
- Upper Mount Type: Eye .5x1.5in
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 36.0000 x 7.5000 x 4.5000 inches
- Weight: 12.6100 POUNDS
