Bilstein Shock Absorbers
$449.00
Skip to product information

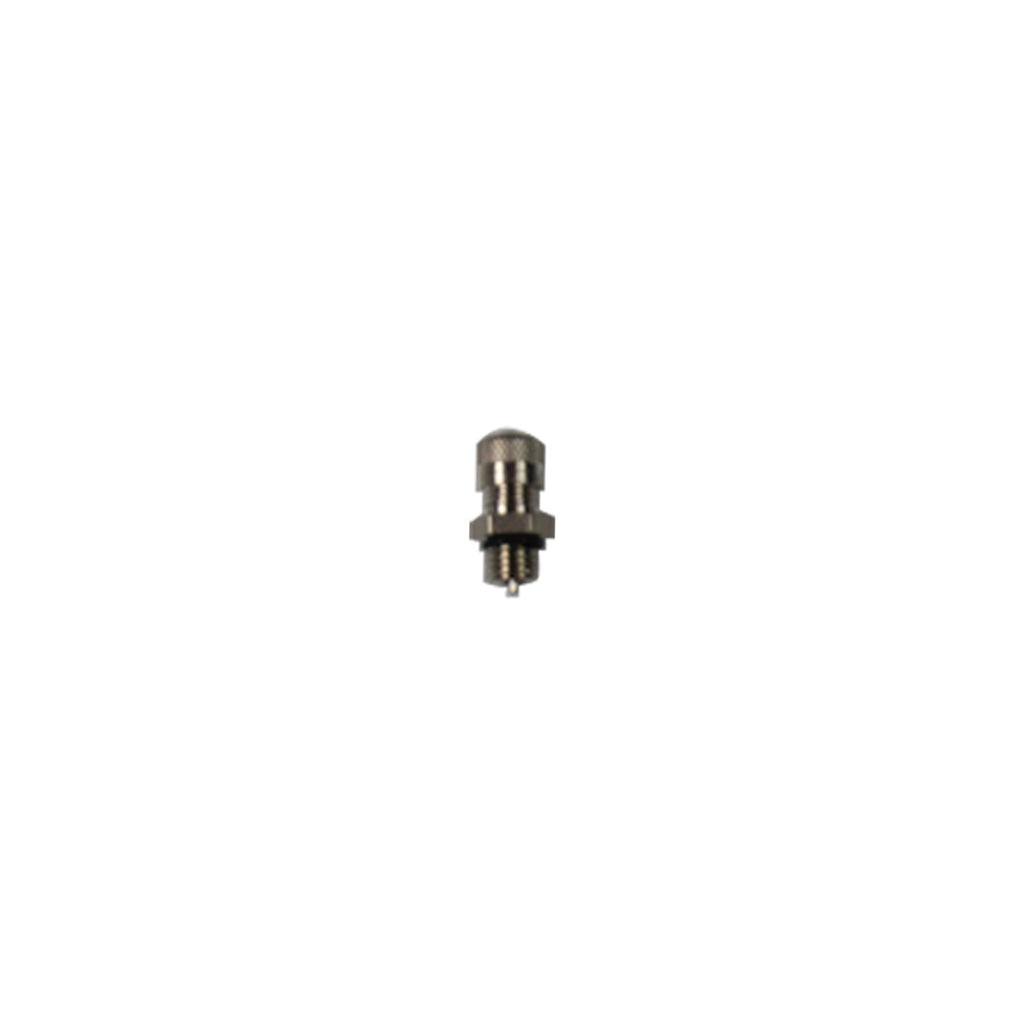

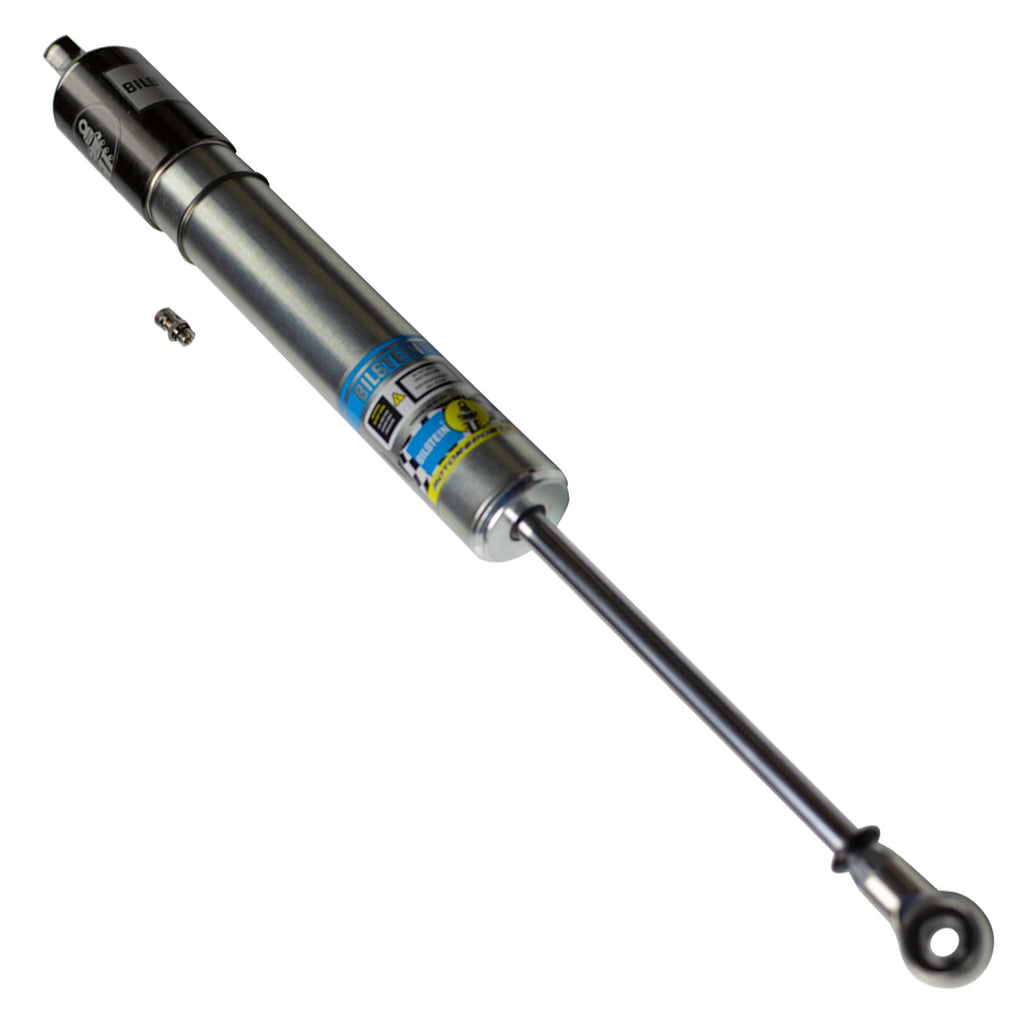

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.
Bilstein Shock Absorbers
$449.00
- Base Valve design delivers ultra low rod pressures and elminates gas preload
- Modular steel body design allows racer rebuildability
- Comes with IMCA-legal plug assembly installed (SNS2 Series)
- No Applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860880174
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body Screw Top (Non-coilover)
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 13.35
- Collapsed Length (MM): 339.0
- Extended Length (IN): 19.16
- Extended Length (MM): 486.8
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Piston Type: Digressive
- Segment: Motorsports
- Series: SNS2 Series (BV)
- Shaft Diameter: 14mm
- Spring Hardware: B4-BOA-0000117
- Spring Seat Included: No
- Stroke/Travel Length (IN): 5.82
- Stroke/Travel Length (mm): 147.8
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 22.4500 x 2.9500 x 2.9500 inches
- Weight: 4.6400 POUNDS
