Bilstein Shock Absorbers
$605.77
Skip to product information

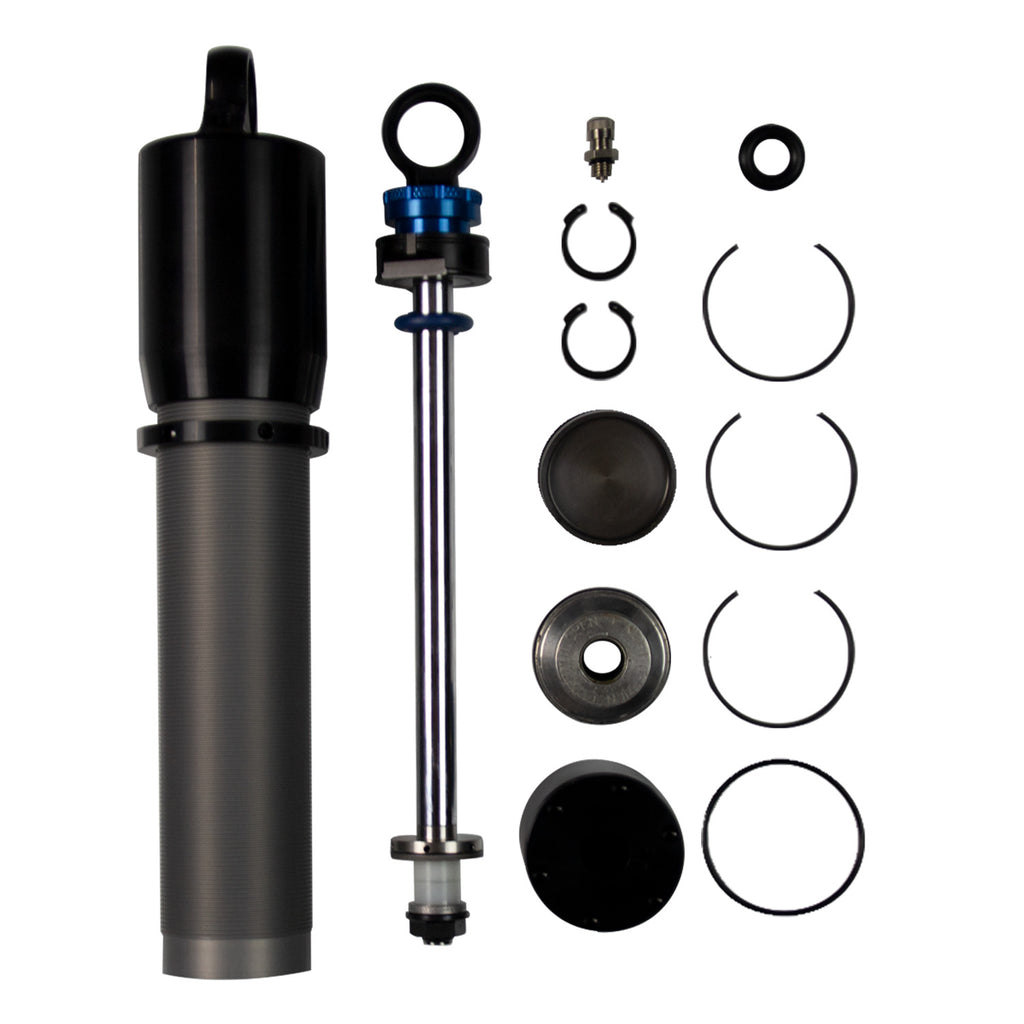

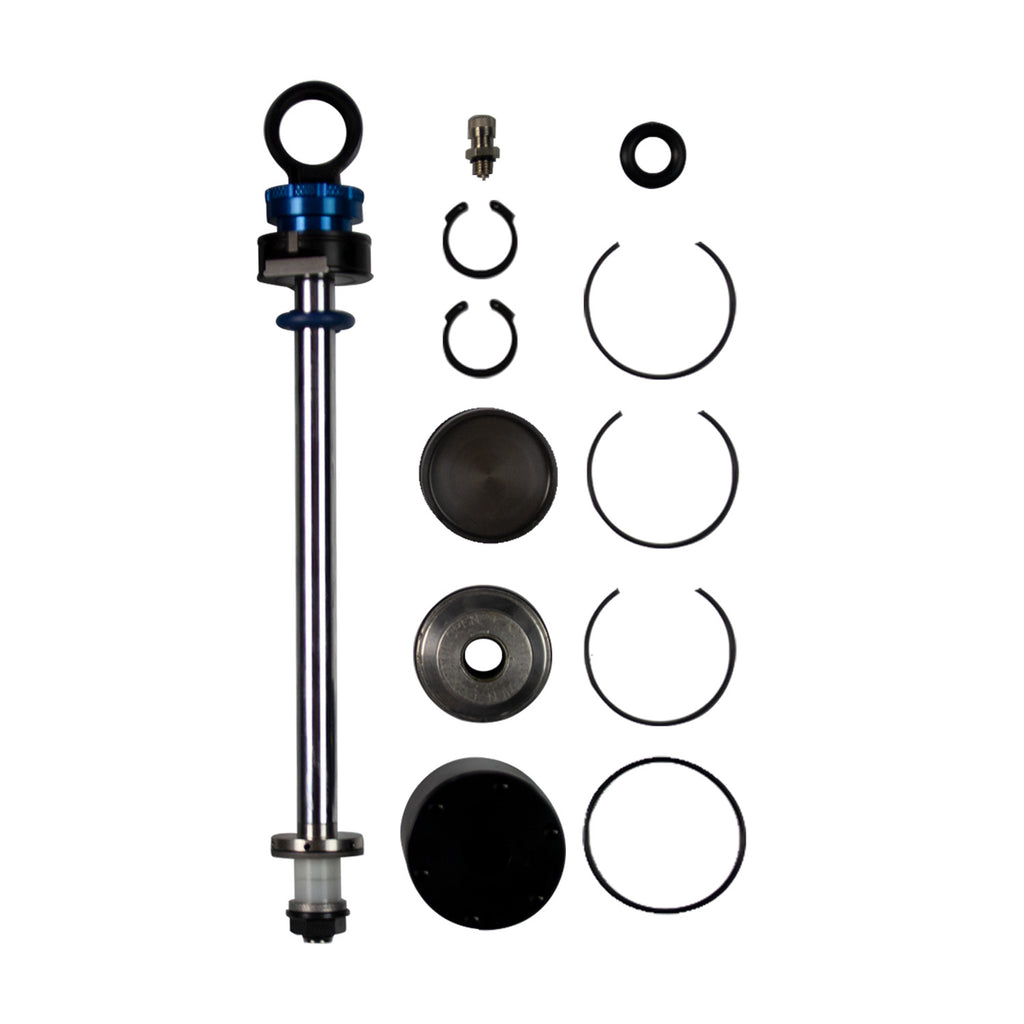

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Bilstein Shock Absorbers
$605.77
- 46mm extruded aluminum threaded body improves durability and heat dissipation
- Dual-zone gas bulb decreases gas pressure while increasing grip levels
- Optimized floating piston improves driver feel and response
- No Applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860874012
- Adjustable Damping: Single Adjustable - Rebound
- Body Design: Threaded Body Large Bulb Screw Top (Coilover)
- Body Material: Aluminum
- Boot Included: No
- Collapsed Length (IN): 13.03
- Collapsed Length (MM): 331.0
- Extended Length (IN): 18.54
- Extended Length (MM): 471.0
- Finish: Clear Anodized
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Piston Type: Sold Separately
- Segment: Motorsports
- Series: XVA Series
- Shaft Diameter: 14mm
- Spring Seat Included: No
- Stroke/Travel Length (IN): 5.51
- Stroke/Travel Length (mm): 140.0
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 22.4500 x 2.9500 x 2.9500 inches
- Weight: 2.7600 POUNDS
